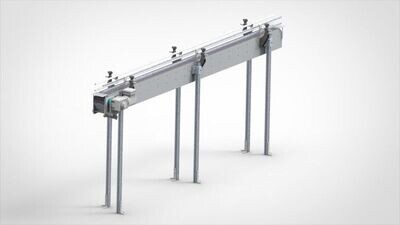

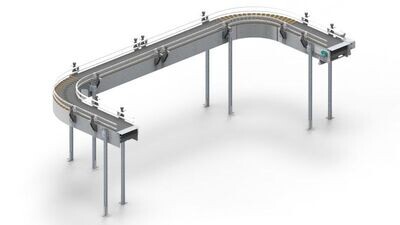

Titans TT 4.5" TableTop 48' Conveyor KIT

BEST SELLING Titans 48' TableTop Conveyor KIT with everything you need to start automating or expanding your packaging area. Are you a DIY type of person? This Titans conveyor KIT includes everything you need to customize your own packaging line!

Titans 48' KIT includes:

(8) 4' Straight Sections

(4) 2' Straight Sections

(2) 90 Degree Curved Sections

(2) 45 Degree Curved Sections

(1) 1' Drive Section with motor mounted on the conveyor

(1) 1' Tail Idler Section

(20) Adjustable Legs with bolt down foot

All assembly hardware

110' of TableTop Chain

Specifications:

• Made in the USA
• UL Certified Components
• Stainless Steel Construction where available.
• Conveyor Speed: Up to 150 feet per minute.
• Conveyor Length: 48' (Custom sizes available.)
• Conveyor Width: 4.5" (Additional sizes available.)
• Conveyor Height: Adjustable 30" to 45" floor to belt.
• Adjustable Conveyor Rails: 3/4"-3"
• Motor Drive: 1/2 HP (non-washdown. washdown motors available upon request.)
• Gearbox: 40:1 (non-washdown. washdown motors available upon request.)
• Electrical Requirements: 230V/3PH/60hz (115V and 460V available upon request.)

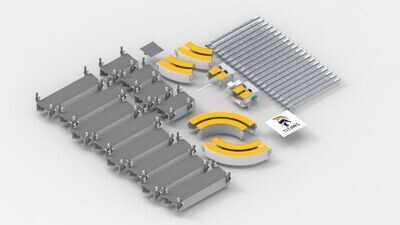

• All assembly hardware, legs and feet are included in the Titans 48' Conveyor KIT. Some assembly is required. The Tians Conveyor KIT on a skid is pictured above.
• Assembly directions are included.
• $350.00 Crating Charge INCLUDED
• Price: $19,500.00
• Buy Online NOW!
• Ready to ship after payment processing. (Typically 5-15 business days.)

**Flat Rate $350.00 Shipping**
