Titans Packaging Typhon Robotic Palletizing Systems
Unleash end‑of‑line performance with plug‑and‑play Titans robotic palletizing that scales with your production. Shipped to your facility in as fast as six weeks!
Meet Typhon—Titans Packaging’s modular robotic palletizing platform engineered for maximum uptime, rapid deployment, and effortless changeovers. From craft operations to high‑throughput facilities, Titans Typhon Palletizing Systems deliver up to 99% OEE with the flexibility and autonomy modern lines demand. Speeds up to 35 cases per minute!
Make Your End‑of‑Line Future‑Proof.
Titans Typhon Robotic Palletizing Systems
Upgrade to a palletizing system that installs faster, runs smarter, and adapts to whatever you put on the line.
Key Advantages
- Up to 99% OEE: Industrial‑grade components, predictive diagnostics, and smart sequencing maximize runtime and throughput.
- Wide Size Flexibility: Palletize cartons and trays from 5"×5"×4" up to 24"×16"×16"—all on a single cell.
- True Plug‑and‑Play: Pre‑engineered, factory‑tested cells ship fully mounted on a metal platform, slashing on‑site complexity and enabling up to 80% savings on assembly and startup.
- Built‑In Autonomy: Integrated pattern‑generation software lets you create, edit, and save pallet patterns in minutes—no external licensing required.
- Compact, Modular Footprint: Add lanes, robots, and tooling as your SKUs grow—without tearing up your floor.
- Operator‑Friendly: Intuitive HMI, guided setup, and visual pattern selection keep training fast and simple.
System Highlights
- Pre‑mounted Cell: Robot, controls, guarding, cable management, and infeed/outfeed interfaces mounted on a heavy‑duty steel platform.
- Pattern Studio: Drag‑and‑drop layer definition, auto‑fill, corner/center patterning, interlocks, and simulation preview.
- Rapid Changeover: SKU recall and saved recipes (where applicable).
- Smart Safety: Interlocked doors, and safe speed/position monitoring.
Palletizer - Typical Specifications
- Package Size Range: 5"×5"×4" to 24"×16"×16" (cartons, trays, cases)
- Payload Capacity: Application‑specific; single or multi‑pick available
- Throughput: Application‑dependent; single‑ or dual‑cell configurations available
- Robots Supported: Leading six‑axis industrial robots (brand options available)
- End‑of‑Arm Tooling: Fork
- Pallet Types: CHEP, GMA, Euro; 1‑ or 2‑position pallet stations with empty pallet magazines
- Utilities: 230VAC, 3‑phase; compressed air as required by EOAT
- Controls: PLC/HMI platform with Ethernet/IP; remote support ready
- Safety: ISO‑compliant fencing, AOPD, and SIL‑rated interlocks
Final performance depends on product, pattern, and line conditions. Titans Packaging will validate your application during proposal.
Deployments & ROI
- Pre‑engineered, factory tested for rapid go‑live
- Single‑lift install with anchored platform, minimal field wiring
- Up to 80% savings in assembly/startup labor vs. traditional build‑in‑place cells
- Fast payback through higher uptime, reduced rework, and fewer manual touches
Software: Typhon Pattern Studio
- Build new pallet patterns in minutes
- Layer‑by‑layer design with auto‑stagger and tie‑sheet logic
- Validate max height, footprint, and stability
- Save, clone, and version SKUs with role‑based access
- Integrate with upstream recipe calls for hands‑free changeover
What does this mean to you?
Faster go‑lives, fewer changeover headaches, and a pallet stack that’s right the first time—every time.
Introducing the Titans Packaging Typhon Duo Robotic Palletizer-- a small but mighty palletizer driven by FANUC robotics that's ready to transform your packaging line.
Two Models:
- Standard (up to 8.5 cases per minute)
- Match up (Up to 20 cases per minute)
- One layout option
What's Included:
- Pre‑mounted robotic palletizing cell on steel platform
- Robot, guarding, PLC/HMI, and safety devices
- Typhon Pattern Studio software license
- FAT with your samples and patterns
- On‑site commissioning, training, and documentation
Ideal For:
- Beverage (cans, bottles, PET)
- Food & consumer goods
- Household/chemical
- Contract packaging and co‑packers
Options available! Sheet Dispenser, Industrial Router, Facing (match up only)

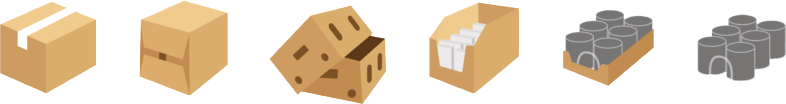

Typhon Palletizers work with a wide range of box types and sizes, from 5x5x4 in to 24x16x16 in.
Introducing the Titans Packaging Typhon Robotic Palletizer -- a robust palletizer driven by FANUC robotics that's ready to transform your packaging line.
Three Models:
- Standard (up to 9.5 cases per minute)
- Match up (Up to 20 cases per minute)
- High Speed (Up to 30 cases per minute)
- Four layout options
What's Included:
- Pre‑mounted robotic palletizing cell on steel platform
- Robot, guarding, PLC/HMI, and safety devices
- Typhon Pattern Studio software license
- FAT with your samples and patterns
- On‑site commissioning, training, and documentation
Ideal For:
- Beverage (cans, bottles, PET)
- Food & consumer goods
- Household/chemical
- Contract packaging and co-packers
Options available! Pallet Dispenser, Sheet Dispenser, Palletjack Conveyors, Facing, Custom Stand Height, Industrial Router
Typhon Palletizers work with a wide range of box types and sizes, from 5x5x4 in to 24x16x16 in.
Introducing the Titans Packaging Typhon XL Robotic Palletizer -- a big machine made to handle big jobs, the Typhon XL is a palletizing workhorse that will help improve your businesses efficiency.
One Model:
- Standard (up to 35 cases per minute)
- Two layout options
What's Included:
- Pre‑mounted robotic palletizing cell on steel platform
- Robot, guarding, PLC/HMI, and safety devices
- Typhon Pattern Studio software license
- FAT with your samples and patterns
- On‑site commissioning, training, and documentation
Ideal For:
- Beverage (cans, bottles, PET)
- Food & consumer goods
- Household/chemical
- Contract packaging and co-packers
Options available! Pallet Dispenser, Sheet Dispenser, Palletjack Conveyors, Industrial Router
Typhon Palletizers work with a wide range of box types and sizes,
from
5x5x4 in
to
24x16x16 in.
Ready to spec your Typhon Robotic Palletizing System?
Send current pack sizes and desired pallet patterns.
